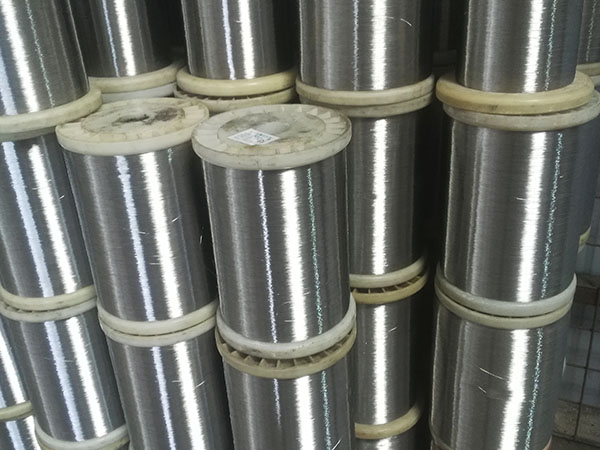

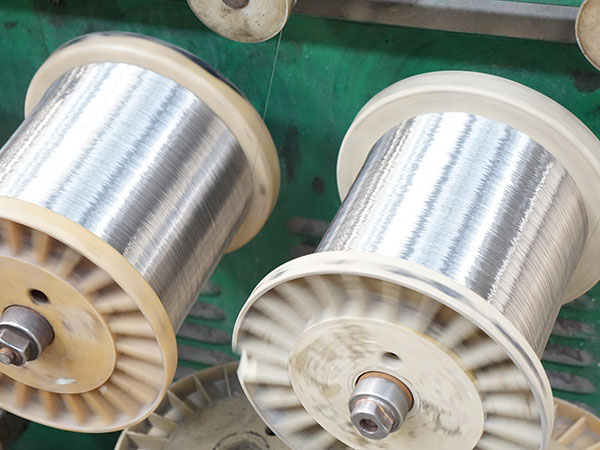

Stainless Steel Wire are high anti-corrosion wire, can bear high temperature, due to its stainless steel , no rust feature , used widely in many industrial zone.
Diameter : 0.08-4.0mm
Materail: SUS304, SUS316,, SUS316L, etc
Wire state: hydrogen annealed Soft, bright hard,wire
Package: 1-3kg/spool, 3-8kg/spools, 11-16kg/spools for the wire blow 0.8mm
0.8mm to 4.0mm in coils.
Used: the annealed soft wire used for weaving stainless steel wire mesh, weave soft stainless steel pipe, electric wire, used for making brush, used for decorative products, used for weaving water pipe and so on.
SWG | BWG | BG | AWG | |||||
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.157 | 3.988 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1398 | 3.551 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.125 | 3.175 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.1113 | 2.827 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0991 | 2.517 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.0882 | 2.24 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0785 | 1.994 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0699 | 1.775 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0625 | 1.588 | 0.0508 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0556 | 1.412 | 0.0453 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0495 | 1.257 | 0.0403 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.044 | 1.118 | 0.0359 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0392 | 0.996 | 0.032 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.349 | 0.887 | 0.0285 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.03125 | 0.749 | 0.02535 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02782 | 0.707 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02476 | 0.629 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.02204 | 0.56 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01961 | 0.498 | 0.01594 | 0.405 |
27 | 0.0164 | 0.417 | 0.016 | 0.406 | 0.01745 | 0.443 | 0.0142 | 0.361 |
28 | 0.0148 | 0.376 | 0.014 | 0.356 | 0.01562 | 0.397 | 0.01264 | 0.321 |
29 | 0.0136 | 0.345 | 0.013 | 0.33 | 0.0139 | 0.353 | 0.01126 | 0.286 |
30 | 0.0124 | 0.315 | 0.012 | 0.305 | 0.0123 | 0.312 | 0.01003 | 0.255 |
31 | 0.0116 | 0.295 | 0.01 | 0.254 | 0.011 | 0.27 | 0.00893 | 0.227 |
32 | 0.0108 | 0.274 | 0.009 | 0.229 | 0.0098 | 0.249 | 0.00795 | 0.202 |
33 | 0.01 | 0.254 | 0.008 | 0.203 | 0.0087 | 0.221 | 0.00708 | 0.18 |
34 | 0.0092 | 0.234 | 0.007 | 0.178 | 0.0077 | 0.196 | 0.0063 | 0.16 |
35 | 0.0084 | 0.213 | 0.005 | 0.127 | 0.0069 | 0.175 | 0.00561 | 0.143 |
36 | 0.0076 | 0.193 | 0.004 | 0.102 | 0.0061 | 0.155 | 0.005 | 0.127 |
37 | 0.0068 | 0.173 | 0.0054 | 0.137 | 0.00445 | 0.113 | ||
38 | 0.006 | 0.152 | 0.0048 | 0.122 | 0.00396 | 0.101 | ||
40 | 0.0048 | 0.122 | 0.00386 | 0.098 | 0.00314 | 0.08 | ||
41 | 0.0044 | 0.112 | 0.00343 | 0.087 | 0.0028 | 0.071 | ||
42 | 0.004 | 0.102 | 0.00306 | 0.078 | 0.00249 | 0.063 | ||
43 | 0.0036 | 0.091 | 0.00272 | 0.069 | 0.00222 | 0.056 | ||
44 | 0.0032 | 0.081 | 0.00242 | 0.061 | 0.00198 | 0.05 | ||
45 | 0.0028 | 0.071 | 0.00215 | 0.055 | 0.00176 | 0.048 | ||
46 | 0.0024 | 0.061 | 0.00192 | 0.049 | 0.00157 | 0.04 | ||
47 | 0.002 | 0.051 | 0.0017 | 0.043 | 0.0014 | 0.035 | ||
48 | 0.0016 | 0.041 | 0.00152 | 0.039 | 0.00124 | 0.032 | ||
49 | 0.0012 | 0.03 | 0.00135 | 0.034 | 0.00111 | 0.028 | ||
50 | 0.001 | 0.025 | 0.0012 | 0.03 | 0.00099 | 0.025 |
