peforated metal

Date：2019-01-24 Click:

peforated metal
peforated metal
peforated metal
peforated metal
peforated metal
peforated metal

Perforated metal panel

Material: Black steel panel, galvanized steel panel, stainless steel panel, Aluminum steel panel

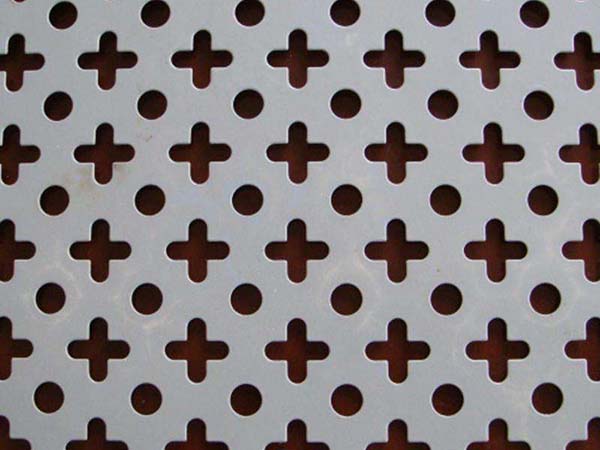

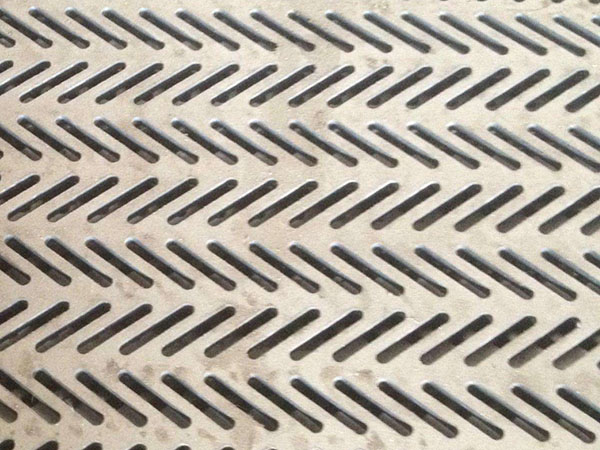

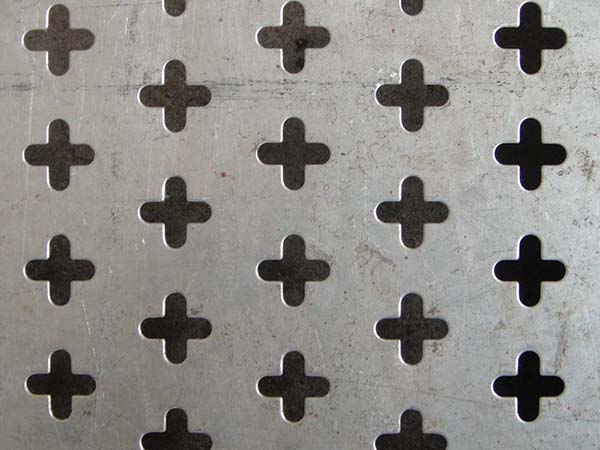

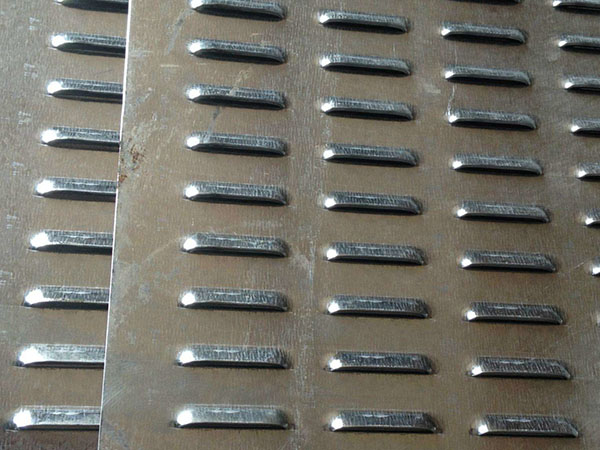

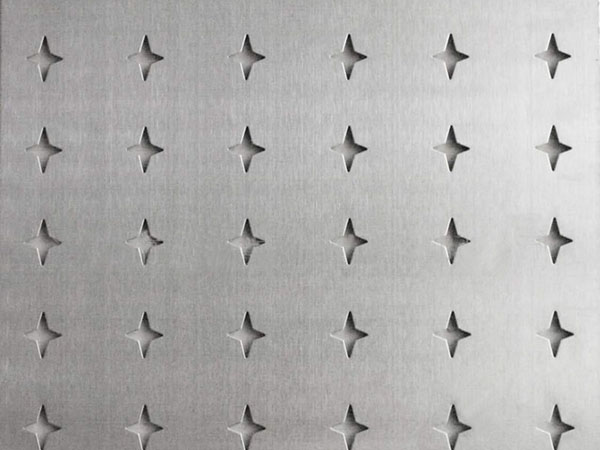

Hole: Round hole, diamond hole, rectangular hole, square hole, fish scale hole , quincunx hole, hexagonal hole, and so on, we can make different hole shape as clients requirement
Panel thickness: 0.5mm to 4.0mm
Hole size: From 0.5mm to 4.0mm
Panel size: 1MX2M, 1.5MX2.0M, 1.5MX2.5M

Panel in roll: 1M to 2.0M width and 10-30M length

Plate material	Thickness of metal	Hole Dia(mm)	Pitch (mm)	Sheet Width(m)	Sheet Length(m)	Porosity (%)
Rolling plate	0.2	6	2	1	20	44
	0.35	5	4	1	20	24
	0.45	6	3	1	20	35
	0.8	3	3	1	20	19.6
Flat plate	0.5	1	1	1	2	19.6
	0.55	1.1	2.2	1	2	22.67
	0.55	1.5	2.8	1	2	26.03
	0.8	1.5	1.5	1	2	19.6
	0.8	2	3.4	1	2	30.78
	1.5	2	2	1	2	19.6
	1.5	5	2	1	2	35.39
	3	5	16	1	2	19.6
Stainless steel; plate	0.5	1	1	1	2	19.6
	0.8	1.5	1.5	1	2	19.6
	1	2	2	1	2	19.6
	2	5	16	1	2	19.6
Aluminum plate	0.5	1	1	1	2	19.6
	0.8	3	3	1	2	19.6
	1.6	2	2	1	2	19.6
	3	4	16	1	2	19.6
