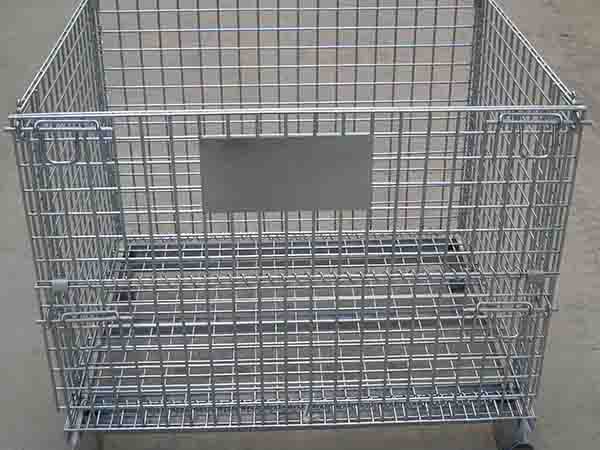

Wire Container

Wire container is also known as storage cage, butterfly cage and warehouse cargo cage. It is a kind of metal cage with network structure used to store goods. TAWINER Wire Container Company's products have the features of fixed capacity for storage, neat stack, intuitive storage, and convenient for stock inventory.

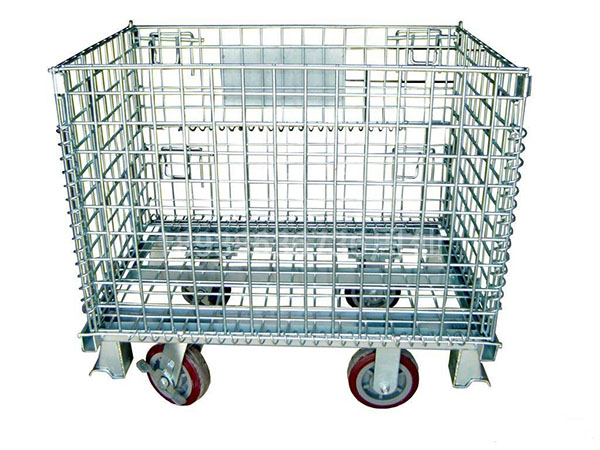

 the bottom is reinforced by U-shaped steel beam, high strength, high load capacity, can be stacked four layers, achieving a three- dimensional storage. Wire container with casters can facilitate the turnaround in the workshop



Our wire containers are widely used in warehouse, workshop, logistics distribution center, and supermarket.



Additional accessories:

Casters.

Caster brakes.

Full drop gate.

Swing gate.

Fork pockets.

Fork stirrups.

Lid.

Divider.

Runners.

Label card.



Surface treatment: electro-galvanized (zinc coating thickness: 6 - 8μm), hot-dip galvanized (zinc coating thickness: 35 - 90μm), PVC coated, painting colors you chose.

Stack-ability: 3 or 4.

Standard: ISO9001.

Packing: in bulk bundled by steel strips.



Item No.

External dimension (L × W × H) (mm)

Internal dimension (L × W × H) (mm)

Wire diameter (mm)

Mesh gauge (mm)

Loading capacity (kg)

Self-weight (kg)

LS-A1

800 × 600 × 640

750 × 550 × 500

4.8

50 × 50

400

20

5.3

600

23

5.6

700

27

5.8

800

29

LS-A2

800 × 600 × 640

750 × 550 × 500

5.8

50 × 100

600

25

LS-A3

800 × 600 × 640

750 × 550 × 500

6.3

50 × 50

1000

32

LS-A4

1000 × 600 × 640

950 × 550 × 500

6.0

1000

37

LS-A5

1000 × 800 × 840

950 × 750 × 700

6.0

1200

49

LS-A6

1200 × 800 × 840

1150 × 750 × 700

6.0

1200

55

LS-A7

1200 × 1000 × 890

1150 × 950 × 750

6.0

1500

65

LS-B1

1000 × 800 × 840

950 × 750 × 700

4.8

600

30

5.3

800

35

5.6

1000

42

5.8

1200

44

LS-B2

1000 × 800 × 840

950 × 750 × 700

5.8

50 × 100

1000

39

LS-B3

800 × 600 × 640

750 × 550 × 500

6.4

800

29

1000 × 800 × 840

950 × 750 × 700

6.3

50 × 50

1500

51

LS-B4

1000 × 800 × 840

950 × 750 × 700

6.4

1500

55

1000 × 800 × 490

1000 × 800 × 350

6.4

1000

40

LS-B5

1200 × 1000 × 890

1150 × 950 × 750

6.4

2000

71

LS-B6

1200 × 800 × 840

1150 × 750 × 700

6.0

1500

55

LS-C1

1200 × 1000 × 890

1150 × 950 × 750

5.6

1300

53

5.8

1500

60

LS-C2

1200 × 1000 × 890

1150 × 950 × 750

5.6

50 × 100

800

48

5.8

1000

53

800 × 500 × 540

750 × 450 × 400

4.8

25 × 50

500

25

LS-C3

1200 × 1000 × 890

1150 × 950 × 750

6.3

50 × 50

2000

68

LS-C4

1200 × 1000 × 890

1150 × 950 × 750

5.6

50 × 100

800

48

LS-C5

1000 × 800 × 840

950 × 750 × 700

4.8

50 × 50

500

37

LS-C6

1200 × 1000 × 890

1150 × 950 × 750

4.8

500

44

LS-C7

1200 × 1000 × 890

1150 × 950 × 750

6.0

100 × 100

500

50

LS-S5

1000 × 800 × 840

950 × 750 × 700

6.4

50 × 100

1000

47

LS-S6

1200 × 800 × 840

1150 × 750 × 700

6.4

1000

56

LS-S7

1200 × 1000 × 890

1150 × 950 × 750

6.4

1200

    62
